IP68 5x3mm RFID On Metal Tag with 1-6m Reading Distance and -20℃-+85℃ Working Temperature for Small Metallic Asset Tracking

Imagem Grande : IP68 5x3mm RFID On Metal Tag with 1-6m Reading Distance and -20℃-+85℃ Working Temperature for Small Metallic Asset Tracking

Detalhes do produto:

Marca:	YURI

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	100
Preço:	negotiable
Detalhes da embalagem:	Empacotamento de três camadas
Tempo de entrega:	De acordo com o produto e a quantidade

Contato

IP68 5x3mm RFID On Metal Tag with 1-6m Reading Distance and -20℃-+85℃ Working Temperature for Small Metallic Asset Tracking

descrição

Nome do produto:	etiqueta do metal do rfid	Freqüência:	860-960mhz
Distância de leitura:	1-6m	Temperatura de trabalho:	-20℃-+85℃
Tempo de Read&Write:	100.000 vezes	Vida:	10 anos
Destacar:	IP68 RFID On Metal Tag , 1-6m Reading Distance PCB UHF Metal Tag , -20℃-+85℃ Working Temperature Anti Metal RFID Tag

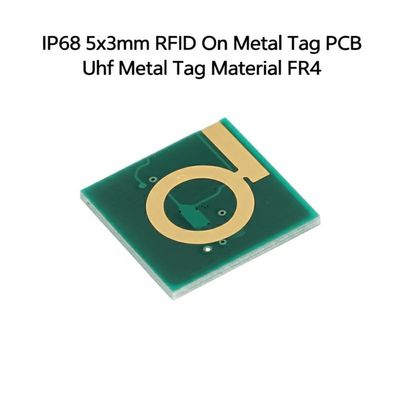

IP68 5x3mm RFID On Metal Tag PCB Uhf Metal Tag Material FR4

D=5mm U8 Small UHF PCB On-metal Tag

This On-metal tag is constructed with FR-4 materials with IP68 rated, it is high reliability and durability suitable for in all types of environments including outdoor. Waterproof, strong acid, strong base, suitable for small metallic asset tracking.

Chip Type: NXP UC 8
Material: FR-4
Dimensions: D=5x3mm

PCB On-Metal Tags

Small electronic devices for identification and tracking of metal objects.

Consist of:

Printed circuit board (PCB) with microprocessor and memory chip
Antenna for data transmission and reception
Casing/housing for protection
Designed to work effectively on metal surfaces
Use specialized antenna designs and signal processing techniques to transmit/receive data
Commonly used in industrial and logistics applications for asset tracking
Can track location and status of objects like shipping containers, pallets, and machinery

Product Detail

Physical Features
Model:	YRP8020
Material:	FR-4
Color:	Black
Dimensions:	D=5x3mm
Weight:	1.0g
Working Temp:	-40~+85℃
Survive Temp:	-40~+150℃
IP Rating:	IP68

RFID Features
RFID Standard:	ISO/IEC 18000-6 TypeC (EPC Gen2)
Chip Type:	NXP UC 8
EPC Memory:	128bits
TID Memory:	96bits
Read Range(Fixed Reader):	FCC:6.2m,on 15x2cm metal; 2.0m,on 14x14cm metal
Read Range(Handheld Reader):	FCC:2.0m,on metal

Other Features
Data Storage:	> 10 years
Re-write:	100,000 times
Installation:	Epoxy, Embedded
Customization:	Encoding, Designing, etc
Package:	200pcs/bag

Application

Weapon control
Bearing tracking
Auto spare parts tracking
Small metallic tools tracking, etc.

About us

Shenzhen Yuri RFID Tag Co.Ltd, specialized in producing and marketing RFID Tag, smart card, is committed to break through the market with excellent quality, sincere and efficient service so as to achieve the group goal with unique Yuri characteristics.

Yuri company has 10years' production experience in smart card and RFID Tag, our company has stable production line and perfect company management system. What's more, we stably cooperate with many high quality manufacturers, some products processed by OEM. Besides, we have established important relationship with microelectronics manufacturers such as NXP, EM, TI Texas instruments, INSIDE, ST, ATMEL, Huhong, Fudan, etc.
